Multi-layer Analysis for Next Generation PONs

Product Highlights

• Complete analysis of the XG-PON1, NG-PON2 and XGS-PON protocols
• NG-PON2 TWDM-PON support with dynamic wavelength switching
• Full multi-layer view of TC, OMCI and upper layers with intuitive rich user interface
• Neutral unbiased testing tool between the OLT and ONUs
• OLT emulation option for ONU stand-alone testing
• Multi-ONU emulation option for OLT testing

Multi-layer Analysis for Next Generation PONs
Are you ready to test and analyze next generation Passive Optical Network (PON) technologies?
The NG-PON Xpert multi-layer analyzer is a unique, real-time protocol analyzer for XG-PON1, NG-PON2 and XGS-PON networks and products.

The NG-PON Xpert multi-layer analyzer is a unique, real-time protocol analyzer for XG-PON1, NG-PON2 and XGS-PON networks and products. It supports the symmetrical 10G and asymmetrical 10G/2.5G options of XGS-PON, as well as TWDM-PON with 4 pairs of wavelengths for NG-PON2. Wavelength switching is software-controlled, supporting both a fixed mode with a user-selected pair of wavelengths, and selection of an ONU which the NG-PON Xpert can follow in case of Handover.

Specifically designed for R&D, laboratory and field application engineers, NG-PON Xpert is a neutral, unbiased testing tool that helps operators and equipment vendors accelerate time-to-market by cutting significant time from development, deployment, troubleshooting and performance testing.

The NG-PON Xpert can be connected near the OLT or near the ONU/ONT, enabling testing of the entire PON and focusing on a selected ONU/ONT. Using multi-layer probing capability it lays out a comprehensive picture of the protocols and traffic running through the PON through intuitive displays, graphs and tables.

OLT Emulation
NG-PON Xpert can also serve as an OLT Emulator for testing an ONU on a stand-alone basis. It can generate PLOAM messages to activate the ONU as well as serve as an OMCI Master to generate and transmit OMCI messages. The NG-PON Xpert OLT Emulator combined with the analyzer provides an integrative ONU conformance test tool, which simultaneously generates commands, analyzes the ONU response, compares its behavior to the expected one and reports any incompliance it detects.

Multi-ONU Emulation
NG-PON Xpert can also serve as a Multi-ONU Emulator, and with this capability introduces a new revolutionary approach for testing an OLT. On the one hand, it allows OLT vendors and service providers to test an OLT without requiring any ONU, and on the other hand it enhances the testing coverage of OLTs with additional functionalities.

The Multi-ONU Emulator significantly reduces the number of ONUs needed for the test setup, thus simplifying the test setups and providing savings in space, cost and power consumption, while at the same time enhancing the test coverage and ensuring repeatability in test scenarios.

Intuitive User-Friendly Tool

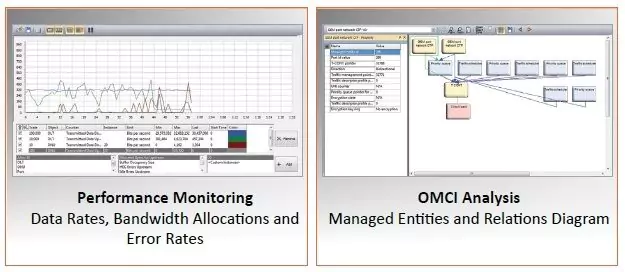

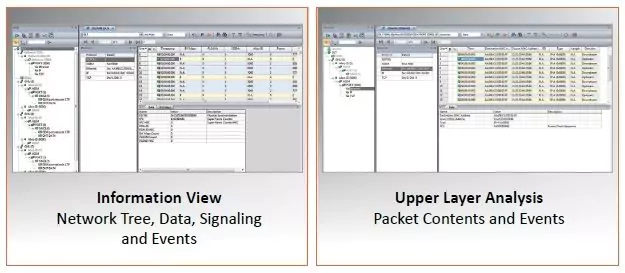

NG-PON Xpert features a rich array of intuitive displays, graphs and tables for testing and troubleshooting of the PON components. The displayed information includes network topology, events, parsed messages of downstream and upstream data, OMCI relations diagrams, VLAN routing analysis, performance monitoring tools and connection links status between the OLT and the ONUs/ONTs.

Stand Alone or Combined Multi-Protocol Analyzer
The NG-PON Xpert is available as a stand-alone product, or in combination with TraceSpan’s 10G-EPON Xpert, to allow the capture and analysis of the 10G-EPON protocols using the same hardware platform.
