RXT4100+ OTDR Module

RXT4100+ OTDR Module

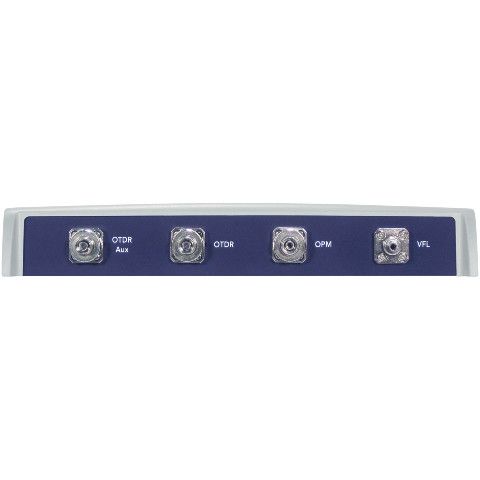

he RXT-4100+ Fiber Optics test module is the world’s first field portable OTDR to offer up to 500,000 data points with 3 cm resolution. The RXT-4100/4100+ OTDR modules feature a range of Optical test functions including OTDR, OPM, Light Source and VFL. Multi-protocol OTN, SDH/SONET, Ethernet, Fibre Channel and Synchronous Packet Networks utilizing optical fibers can easily be verified as well as OSA testing on CWDM/DWDM network with a single test platform ensuring maximum test productivity. Fiberizer™ software for Windows® Desktop, Android™, and/or Apple® mobile devices is available to assist in data transfer, record management, and report generation for various VeEX fiber optics testers. View the Fiberizer webpage for more details.

Optical Testing

  • Multimode and Singlemode Wavelength options - 850, 1300, 1310, 1490, 1550, 1625 & 1650 nm
  • Filtered 1625 or 1650 nm OTDR port for in-service measurements
  • OTDR ports feature live fiber detection
  • High dynamic range for long haul fibers and testing through high-count PON splitters
  • Sampling points up to 500,000 (RXT-4100+)
  • FTTx/PON optimized test parameters for best in class dead zones
  • Event dead zone < 1m, Attenuation dead zone < 4m
  • Telcordia GR-196 and SR-4731.sor file formats
  • Optional V-Scout/V-Profile mode – Intelligent Link Mapping using intuitive icons derived from multiple test acquisitions
  • Optional Built-in Visual Fault Locator
  • Optional Optical Power Meter with WaveID detection
  • Optional Light Sources with WaveID and Loop mode
  • Optional Fiber Inspection Scope (USB)
  • Upload OTDR traces, OLTS results and Fiberscope images directly to Fiberizer Cloud
  • Built-in G.657 launch fiber
  • Universal 2.5 mm optical interfaces with inter-changeable optical adaptors (SC/FC/ST/LC)

Software

  • Flexible modular architecture supports multiple technologies and applications
  • ReVeal™ PC software to maintain instrument firmware, manage test configurations, process measurement results and generate customer test reports
  • Fiberizer Desktop PC software for fiber trace analysis
  • Fiberizer Cloud based trace analysis and data management
  • R-server support for centralized work force management and test results repository

Hardware

  • High resolution, 7” full color TFT touch-screen viewable in any lighting condition
  • Connectivity via 10/100Base-T Management interface, WiFi™, Bluetooth®, or 3G Card for back office applications
  • Intelligent fan operation with built-in temperature sensor
  • Interchangeable Li-ion battery pack for extended test time
  • USB-A Interface for USB flash drives and fiber inspection probe connection
  • Optional built-in GPS module for Geotagging OTDR traces
