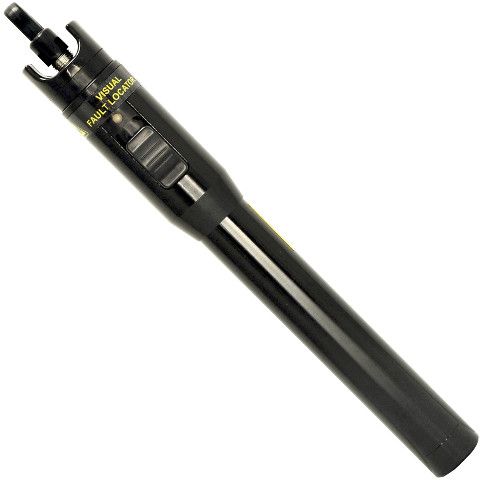

FX10+ | Pen Style Visual Fault Locator

FX10+ | Pen Style Visual Fault Locator

Key features

  • Small pen size for field applications
  • Simple operation
  • CW and Pulsed operation
  • Rugged and Weatherproof
  • Lightweight anodized aluminum construction
  • Durable dust cap to protect optical interface
  • Low battery indication
  • Accessories include (2) AA alkaline batteries and carrying pouch with wrist strap



Specifications*

  • Wavelength: 650 nm ± 10 nm
  • Emitter type: FP-LD
  • Output power: 1mW
  • Optical Connector: 2.5 mm universal; optional FC to universal 1.25 mm converter
  • Operating modes: CW and Pulse
  • Pulse frequency: 2 Hz - 3 Hz
  • Power Supply: 2 Alkaline AA
  • Operating time: 80 hours
  • Operating temperature: -10˚C to +45˚C
  • Storage temperature: -40˚C to +70˚C
  • Size: 15 mm x 15 mm x 180 mm
  • Weight (without batteries): 90 g or 0.20 lb

* Notes:

  1. All specifications are valid at 23˚C ± 2˚C (73.4˚F ± 3.6˚F)
  2. Output power using 50/125 um fiber
