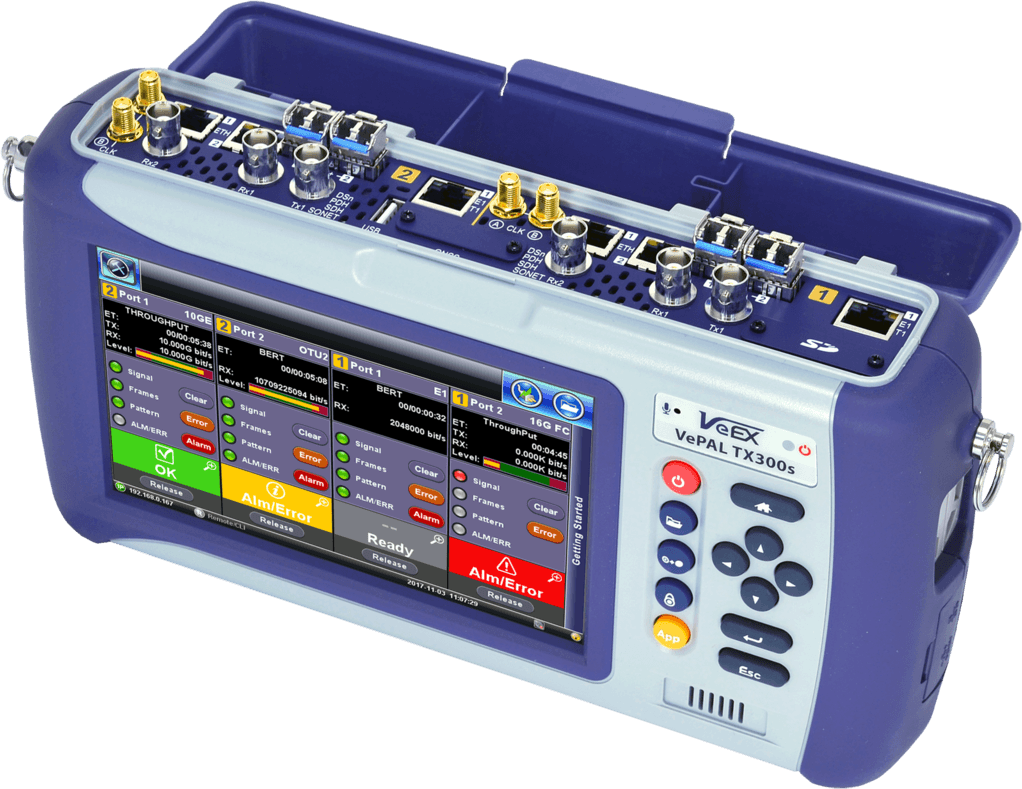

TX340s Module All-in-one Optical and Service Test Platform

Advanced Multi-Service Test Option

The TX340s hardware option for the TX300s portable test platform offers advanced test solutions for OTN, SONET/SDH, PDH/DSn, Carrier Ethernet, Fibre Channel and CPRI/OBSAI. This factory-installed hardware option allows flexibility to fit any application, for example, the addition of a second TX340s, 100G or OTDR module, to be installed concurrently in the same test platform.

TX340s Module hightlights

• Flexible, all-in-one multi-service test solution, from 64 kbps to 16 Gbps (can be combined with 100G and OTDR modules)
• Transport, Core, Metro, SAN, Backhaul and Fronthaul applications
• Supports up to four test port groups with independent and simultaneous measurements
• Test cards summary provides an overview of up to four running tests, as well as test application switching and management functions

OTN/SDH/SONET/PDH/DSn

• Advanced flexible OTN, SDH/SONET, PDH/DSn test payload map/mux, including EoOTN (ODU2e, ODU0 and ODUflex)
• Overhead Monitoring and Byte decoding
• Protection Switching and Service Disruption time
• Round Trip Delay on all interfaces and payload mappings
• Tandem Connection Monitoring
• Jitter and Wander (E1, E3, DS1, DS3, STM-1o, OC-3)
• Pulse Mask Analysis at E1, E3 and DS1, DS3 rates

Fibre Channel

• Storage Area Networks (SAN) testing up to 16G
• BERT and Throughput test
• RFC2544: Throughput, latency, frame loss, back to back tests
• Layer 1 and layer 2 loopbacks

CPRI Testing

• Common Public Radio Interface standard (CPRI): Unframed, Layer 1 Framed and Layer 2 tests (REC/BBU and RE/RRH emulation)
• Open Base Station Architecture Initiative (OBSAI): Unframed tests
• BER testing with PRBS stress patterns
• Latency measurements

Ethernet

• RFC2544 Throughput, latency, frame loss and back to back tests
• V-SAM test suite compliant with ITU-T Y.1564 standard
• IEEE 802.3ah, ITU-T Y.1731, IEEE 802.1ag, MPLS-TP OAM support
• Q in Q (VLAN stacking), MPLS, MPLS-TP, PBB support
• RFC6349 V-PERF TCP test suite
• Layer 2 Control Protocol Transparency test
• In-service monitoring with frames capture and on-screen protocol decode
• One way latency with optional built-in GNSS receiver
• Fully integrated solution for synchronized packet networks
• Supports IEEE 1588v2/PTP and SyncE/ITU-T G.8261 standards
• Master Clock and Slave clock emulation
• IEEE 1588v2/PTP protocol monitor & decode, and PDV analysis
• Wander measurement and MTIE/TDEV analysis
• ESMC SSM generation, monitoring, and decoding
• VoIP and IPTV testing

IEEE C37.94™

• Power/Utilities Teleprotection Network testing
• BERT, SDT/APS, RTD, and transparency tests
• Passive bidirectional Monitoring and intrusive Pass-Through modes
• GNSS-assisted One-Way-Delay measurements
• Jitter and Wander Measurements

TX340s Key features

• Flexible wavelength and bit rate options using industry standard pluggable optics
• OTN: OTU2, OTU1, OTU2e, OTU1e
• SDH: STM-64/16/4/1/0
• SONET: OC-192/48/12/3/1, STS-3/1
• PDH/DSn: DS1, DS3, E1, E2, E3, E4
• EoOTN Testing with OTU1e, OTU2e, ODU0 and ODUflex with bulk, and Ethernet payloads
• Coupled or independent Tx and Rx settings
• Tandem Connection Monitoring
• Service disruption testing (SDT) and APS
• Round trip delay on all interfaces and payload mappings
• Jitter/Wander Analysis (E1, E3, DS1, DS3 and STM-1o, OC-3)

Test Interfaces (per module)
