RXT-4500/4510 Series OSA Modules

RXT-4500/4510 Series OSA Modules

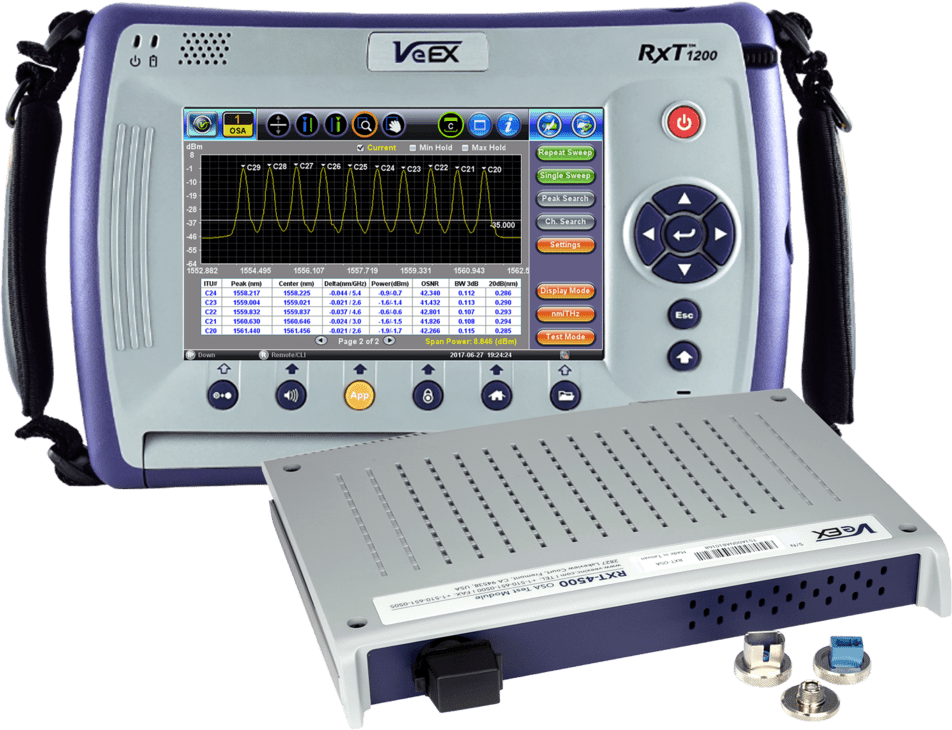

The RXT-4500/4510 OSA modules are Optical Spectrum/Channel Analyzers for CWDM and DWDM networks. Using superior micro-optic design and MEMS tuning technology, the modules measure key optical parameters such as wavelength, channel power, and OSNR.

  • Precise measurement of WDM wavelengths
  • Wide wavelength range
  • High wavelength accuracy and resolution
  • Built-in wavelength reference
  • High power sensitivity
  • Excellent power accuracy
  • Rugged, reliable design - No moving parts
  • Superior shock resistance
  • Periodic calibration not required
  • Ultra-low power consumption
  • Low temperature sensitivity
  • Intuitive operation with dedicated test functions
  • Touch screen for simple zooming and navigation
  • Battery operating time > 8 hours
  • Wavelength range from 1260 to 1650 nm
  • DWDM channel spacing down to 25 GHz, module dependent
  • Resolution 0.1 nm C-band
  • In-band OSNR measurement
  • Fast continuous scanning at ≤ 5 sec
  • Simultaneous measurements of up to 200 channels, module dependent
  • Channel power measurement
  • Channel threshold detection
  • Span power measurement
  • Continuous sweep with min/max hold
  • Channel frequency and wavelength delta vs. ITU grid
  • High wavelength accuracy: ± 50 pm
  • High dynamic range: ≥ 65 dB
  • OSNR measurement: up to 40 dB
  • Low Polarization Dependent Loss (PDL): < 0.3 dB
  • Universal optical interface with industry standard adaptors
  • Supports 10/40/100 Gbps transmission modulation types
  • Optical Channel Checker Test Mode
  • Drift Analysis Test Mode
  • DWDM channel monitoring per ITU G.694.1 grid for 25/33/37.5/100/200 GHz, module dependent
  • CWDM channel monitoring per ITU G.694.2 grid
  • OSNR measurement compliant with IEC 61280-2-9

* RXT-4500 OSA modules with serial # prefix TS3 are end of life. Software upgrades, calibration and repair services are no longer supported or offered.
