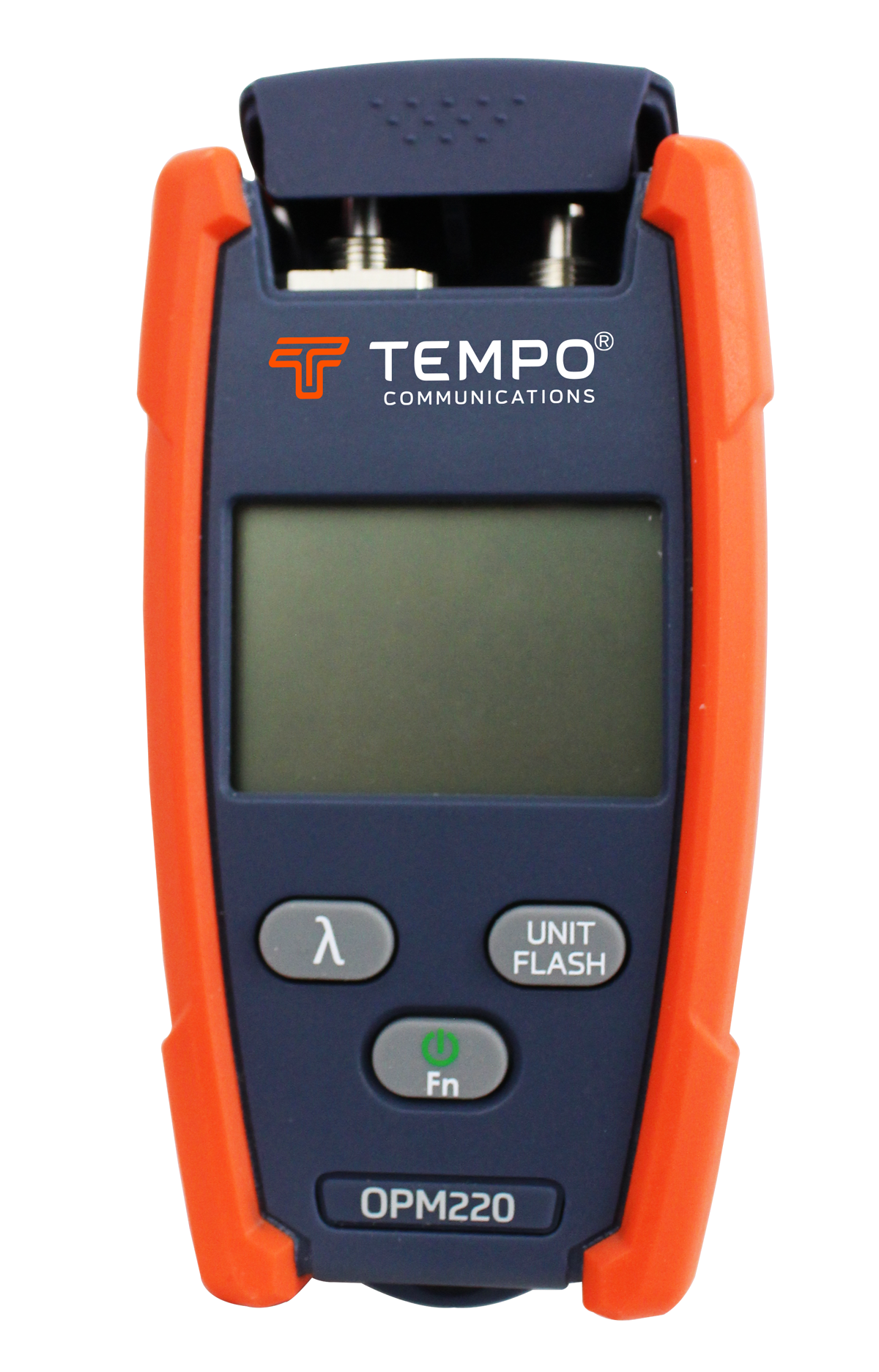

Tempo Micro Optical Power Meter
The Tempo Communications Micro Optical Power Meters (OPM210 and OPM220) are available in standard and high-power versions for the Telco and MSO markets. Absolute and referenced power measurements ensure fast and accurate loss budget and insertion loss measurements. Injected tones of 270Hz, 1kHz, and 2kHz from a compatible source can be used to positively identify fiber optic cables.
The Micro OPM supports wavelengths of 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 and 1650nm.
- Standard and High Power Optical Power Meters
- Measure Optical Power (dB, dBm & mW)
- OPM210 Measuring Range: -70 to + 10dBm (980/1270/1310/1490/1550/1577/1625); -60 to +10dBm (850/1300)
- OPM220 Measuring Range: -50 to +26dBm (980/1270/1310/1490/1550/1577/1625); -40 to +26dBm (850/1300)
- Accurate Insertion Loss Measurements
- Tone and Probe Fiber Networks at 270Hz, 1kHz and 2kHz
- Absolute or Referenced Optical Power Measurements
- Integrated Visual Fault Locator
- Integrated Flash Light
- InGaAs detector for Maximum Sensitivity
- Wavelengths of 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 and 1650nm.
- Universal Bulkheads
- Compatible with Singlemode and Multimode Networks
- Auto Off or Continuous On Operation
- AAA Battery Operation
- Supplied with Lanyard.
