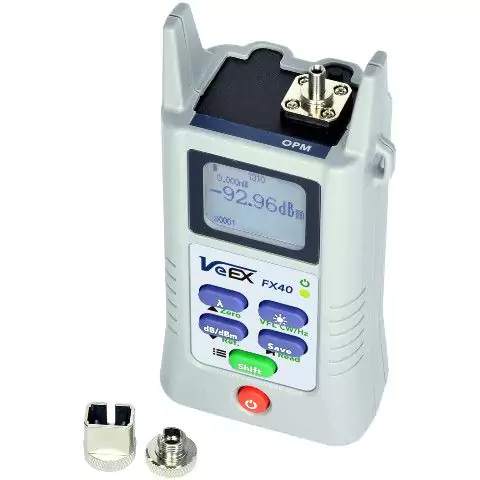

FX40 Series (OPM & OLS)

FX40 Series (OPM & OLS)

Optical Power Meter (OPM)

Optical Light Source (OLS)

Fiberizer™ software for Windows® Desktop, Android™, and/or Apple® mobile devices is available to assist in data transfer, record management, and report generation for various VeEX fiber optics testers. View the Fiberizer webpage for more details.

  • Singlemode and Multimode testing
  • Built-in universal 2.5 mm tip sleeve
  • PON, Telecom, CATV and LAN/WAN applications
  • Dual wavelength laser source and power meter options
  • High accuracy and wide dynamic range
  • Save OPM measurements (>100 single results)
  • Transfer stored results to a PC or upload results to Fiberizer Cloud via micro USB interface for report generation and printing
  • Reference power level setup and recall
  • Splash resistant keypad and chassis design
  • High contrast display - Visible outdoors and backlight for indoor or low light conditions
  • Alkaline or Rechargeable battery option with Auto power off
  • Field interchangeable optical adaptors support multiple connector types and allow easy access for cleaning

Optical Power Meter (OPM)

  • Calibrated wavelengths: 850, 1300, 1310, 1490, 1550, 1625, 1650 nm
  • Power Level Range:
    -PM1 version: -65 to +7 dBm
    -PM2 version: -50 to +25 dBm
  • Accuracy1,2: up to ±0.2 dB or 5%
  • Modulation and Wave ID detection: Not supported

Optical Light Source (OLS)

  • Wavelengths: 850/1300 nm to OLS wavelengths
  • Test Tone Generation: 270, 1 KHz, 2 KHz
  • Stability: ±0.03 dB for insertion loss measurements

Visual Fault Locator (VFL)

  • Wavelength: 650 nm
  • Connectory style: Universal 2.5 mm
  • Mode: CW or 2 Hz
  • Power Output: 1 mW
  • Laser Safety: Class 2

General

  • Results saving: 100 without timestamp
  • OPM Remote control data transfer using LT-Sync PC software
  • Communication port: micro USB
  • OLS/OPM adaptor types: FC/SC/ST/LC/E2000, Universal 1.25 mm, Universal 2.5 mm
  • Battery: Alkaline (AA) or Optional NiMH with 5V micro-USB power adaptor
  • Battery operating time: approximately 100 hours (without backlight)

Notes:
1. PM1: SM ±5% at -50 to +7 dBm; ±10% -65 to -50 dBm; MM ±8% at -50 to +7, ±13% at -65 to -50 dBm. Applies only with OPM fitted with SC or FC adaptor.
2. PM2: SM ±5% at -35 to +25 dBm; ±10% -50 to -35 dBm; MM ±8% at -35 to +25 dBm; ±13% -50 to -35 dBm. Applies only with OPM fitted with SC or FC adaptor.
