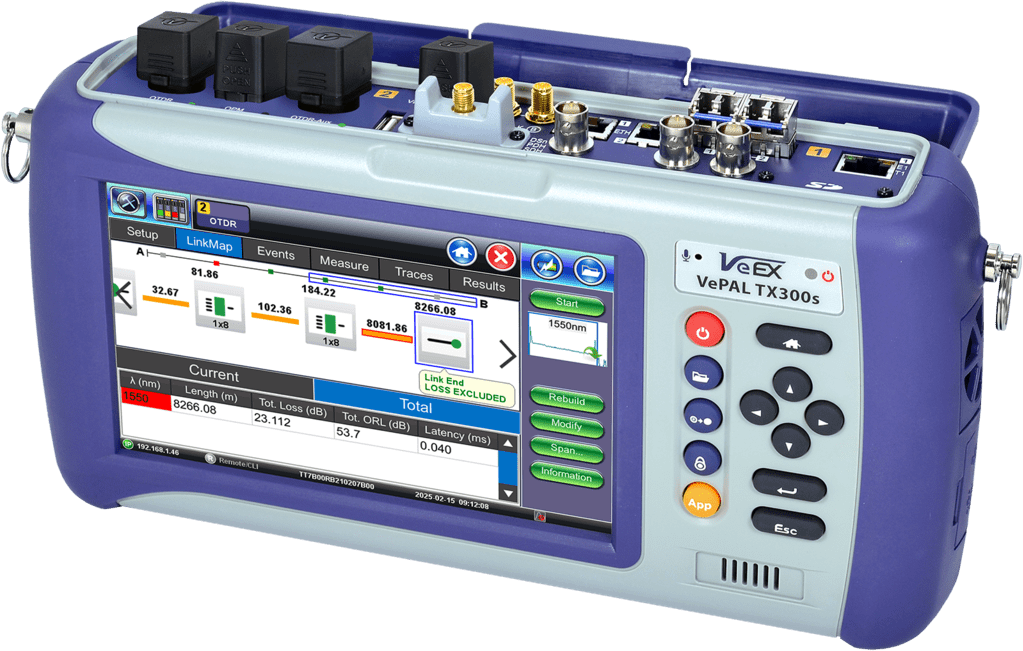

VeEX TX300s-OTDR Module Fiber Optics Test Option

All-in-One Optical and Service Test Platform
The Fiber Optics test option for the VeEX® VePAL TX300s adds a full range of Optical test features that support OTDR, OPM, Light Source and VFL. Together with Advanced OTN, SDH/SONET, PDH/DSn, Ethernet, Fibre Channel, and Synchronous Packet Networks support, the TX300s offers a complete network test solution from physical layer up to higher layers of multi-service performance testing.

Fiberizer  software for Windows® Desktop, Android™, and/or Apple® mobile devices is available to assist in data transfer, record management, and report generation for various VeEX fiber optics testers. View the Fiberizer  webpage for more details.

Highlights

Software

• Flexible software architecture supports dual test applications running simultaneously
• ReVeal™ PC software to maintain instrument firmware, manage test configurations, process measurement results and generate customer test reports
• Fiberizer  Desktop+ PC software for fiber trace analysis
• Fiberizer  Cloud based trace analysis and data management
• VeSion R-Server support for centralized work force management and test results repository

Hardware

• High resolution, 7” full color TFT touch-screen viewable in any lighting condition
• Connectivity via 10/100Base-T Management interface, Wi-Fi™, Bluetooth®, or 3G Card for back office applications
• Built-in microphone and speaker for VoIP & VF applications
• Intelligent fan operation with built-in temperature sensor
• Interchangeable Li-ion battery pack for extended test time
• USB-A Interface for USB flash drives and fiber inspection probe connection
• Universal 2.5 mm optical interfaces with inter-changeable optical adapters (SC/FC/ST/LC)
• Optional built-in GNSS/GPS module for geotagging OTDR traces

Key Features

Optical Testing

• FTTx/PON optimized parameters for best in class dead zones for 1xN splitters and normal reflective events
• Singlemode Wavelength test options - 1310, 1490, 1550 & 1625 nm
• Filtered 1625 nm or 1650 nm OTDR port for in-service measurements and live fiber detection with embedded power meter
• High dynamic range (up to 45 dB) for long haul fibers and testing through high-port-count PON splitters
• Sampling points up to 500,000
• Event dead zone 0.8m typ, attenuation dead zone 3m ty
• Telcordia GR-196 and SR-4731.sor file formats
• Optional V-Scout mode – Smart Link Mapping using intuitive icons derived from multiple test acquisitions
• Optional built-in Visual Fault Locator, Optical Power Meter and Light Sources
• Optional Fiber Inspection Scope (USB)

Multi-Service Testing

• SyncE and IEEE 1588v2
• OTN, SDH/SONET, PDH/DSn
• Ethernet and Fibre Channel
• CPRI and OBSAI Testing
