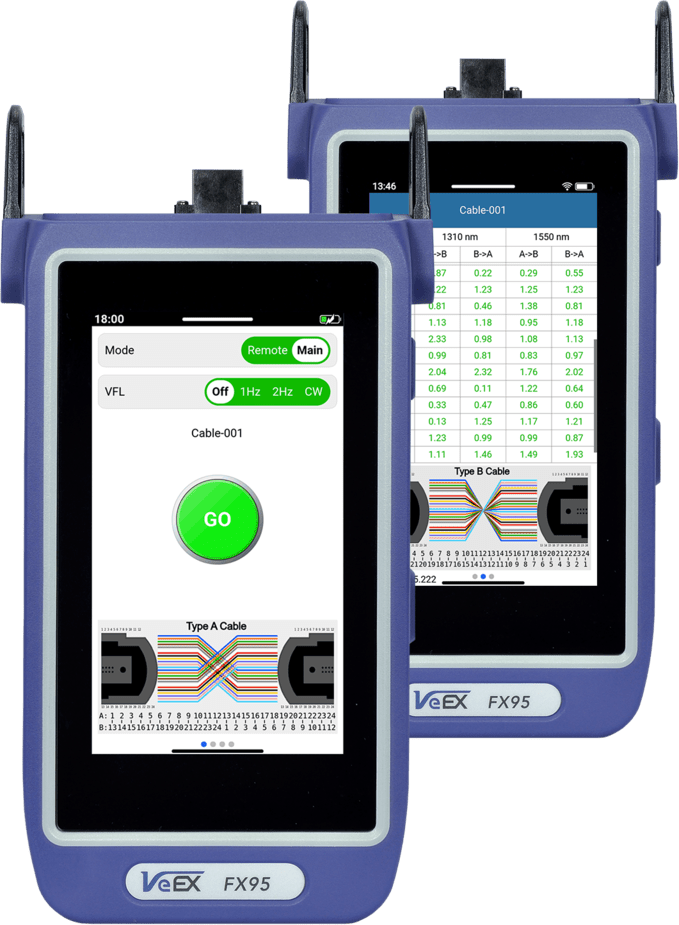

FX95 MPO Optical Loss Test Set (OLTS)

Automated Bi-Directional Tier 1 Certification

The FX95 is the industry’s first fully automated bi-directional optical loss test set that can perform all the test requirements for Tier 1 (Basic) certification using a native MPO-24 APC interface per ANSI/TIA-568.3-E through the integration of source and power meter in each device. Multi-fiber certification with loss, polarity, and length measurements with on-board certification standards can be accomplished in 24 seconds for 24 fibers.

Data centers are experiencing unprecedented growth driven by cloud computing, artificial intelligence (AI), machine learning, and high-speed Ethernet technologies. Network architectures that once relied primarily on duplex fiber connections are rapidly transitioning toward high-density parallel-optics infrastructure utilizing MPO (Multi-Fiber Push-On) connectivity. Technologies such as 40GBASE-SR4, 100GBASE-SR4, 400G-DR4, and 800G-DR8 rely on MPO-based cabling systems containing 8, 12, 24, or more fibers operating simultaneously. As fiber density increases, installation, certification, and troubleshooting become significantly more complex.

The VeEX FX95 Bidirectional MPO Optical Loss Test Set (OLTS) is designed specifically to address these challenges. It provides automated bidirectional insertion loss, polarity, and length testing for MPO-based fiber links with a single button press, and generates centralized reports for Tier 1 certification workflows.

PLATFORM HIGHLIGHTS

• Quickly perform 1310/1550 nm Tier 1 certification of MPO links and generate bi-directional report for loss, polarity and length within 1m
• Instant boot-up to start testing
• Eliminate the need for technicians to swap locations to complete Tier 1 certification
• Simplify the job setup and one-button testing
• Comprehensive Tier 1 (Loss/Length/Polarity) Test Results
• Save 10,000 cable results in memory
• Quickly manage/transfer test results with our patented QR code feature, built-in web browser or USB stick
• Remote access/control via built-in web browser and VNC® client; compatible with VeEX EZ Remote services
• Li-Ion battery for 5 hours
• 7-inch color touchscreen
• Application free Test Result upload using NoApp® (US Patent 12,190,199) QR-code
• Fiberizer® Cloud test result management and custom report templates
• R-Server option for workflow and results management

KEY FEATURES

• Support 8/12/24 fiber-based testing
• Dual wavelength 1310/1550 source
• Integrated source and meter in native MPO-24 APC interface
• Insertion Loss measurement
• Smart polarity type validation and mapping (Type A, B and C)
• Up to 100 km length measurement
• Unidirectional or bidirectional
• In-line visual fault locator (VFL) for MPO cable tracing
• Smart automated referencing for Type A/B/C
• Pass/fail based on network standards or user defined
• Report format in .PDF or .CSV

KEY APPLICATIONS

• Data center cabling certification
• AI and cloud infrastructure deployment
• Multi-fiber trunk cable acceptance testing
• Enterprise and campus fiber installation
• Broadband and outside plant construction projects
