Ultra-Low Noise Xtal Multiplied Unit for any frequency between 200MHz - 12 GHz

Ultra-Low Noise Xtal Multiplied Unit for any frequency between 200MHz - 12 GHz

Linwave’s XMU range of fixed frequency Ultra Low Noise Multiplied Crystal Oscillator Modules are designed for very high-performance applications requiring phenomenally low phase noise performance. The devices can be used in a multitude of differing applications with the added advantage of improved vibration performance due to its multi-crystal dual- axis design and ultra-low noise multiplication techniques. This device is particularly ideal for RADAR and Quantum applications, offering industry leading phase noise performance. The modules output frequency is customised for each application with solutions available at any fixed frequency in the range 200MHz to 12 GHz . Optional additional features such as ability to lock to an external reference frequency and multiple low-noise outputs can be made available upon request.

Typical applications

  • Radar Systems
  • System Master Clock
  • Quantum Computing System Clock
  • Test and Measurement

Product features

  • Industry Leading Ultra Low Phase Noise
  • Performance -158dBc/Hz floor at 5.6GHz
  • Multi-Crystal Oscillator with internal oven for
  • improved vibration performance of 7.9E-11/g
  • Output power of +16dBm output into 50Ω

Linwave electrical characteristics - operational.png

Linwave control characteristics and advanced features.pngLinwave mechanical characteristics.png

Linwave environmental characteristics.png

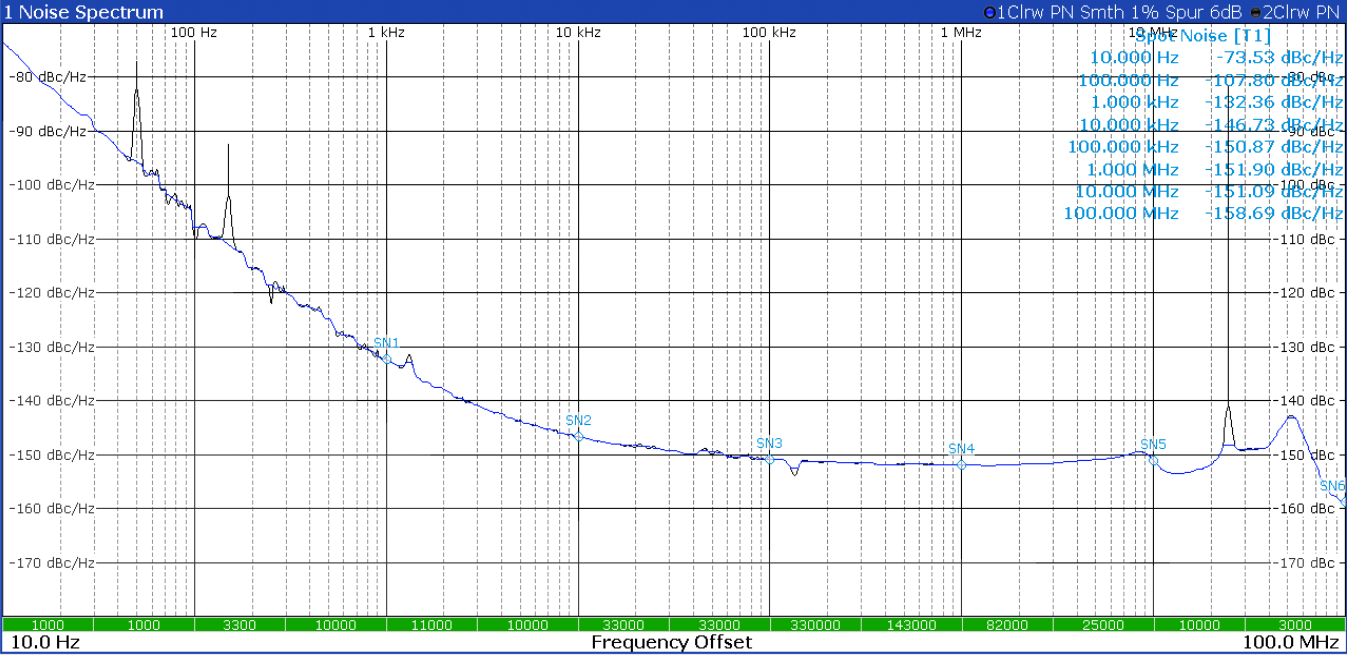

Linwave performance data.png

Linwave outline drawing.png
