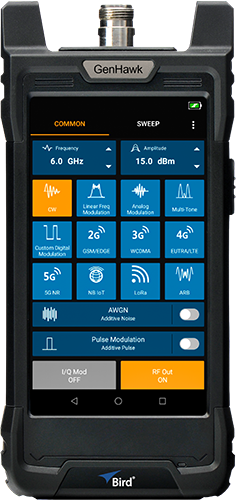

GenHawk 6.5 GHz Handheld Vector Signal Generator
Field Ready. Lab Accurate.
The GH-60 allows truly portable RF signal generation from 100 MHz to 6 GHz, optionally from 300 kHz to 6.5 GHz. Included Continuous Wave (CW) output allows for simple test signals for antennas or RF systems while optional modulations easily replicate communication standards like 5GNR, LTE, NB-IoT, and LoRa and custom modulation options allow simple generation of QAM, PSK, ASK and more. Field engineers, technicians, wireless equipment manufacturers, service providers, educators, and contractors will find freedom in the ability to generate complex modulations and duplicate real-world signals on-the-fly without a laptop or extra tools.
Features
- Generate complex RF signals from -130dBm to +15dBm without any extra laptop or tools.
- Easily output custom digital modulations, cellular standards, chirps, and more.
- Verify immunity and detection with additive noise and pulse options.
- Take full control with arbitrary signal output supporting I/Q data.
- Easy-to-use, tile-based UI for multiple modulation schemes.
- High-resolution, full-color display for indoor or outdoor viewing.
- 5 hours of continuous battery operation.
Supported Modulations
- Cellular: GSM, WCDMA, TDD/FDD-LTE, 5G NR
- Wireless Communications: LoRa, NB-IoT
- Analog: AM, FM, PM, Sweep, Chirp, Pulsed, Multi-Tone, USB, LSB
- Digital: BPSK, QPSK, OQPSK, 8PSK, MSK, FSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, ASK
- Additive: Noise, Pulse
- Arbitrary I/Q
Product specifications
| Item No | GH-60 |
|---|---|
| Item Name | GenHawk, Handheld Vector Signal Generator |
| Frequency Range |
10 MHz to 6 GHz Optional 300 kHz to 6.5 GHz |
| Frequency Resolution | 0.1 Hz |
| Frequency Accuracy | ±0.5 ppm |
| Output Power | -130 dBm to +15 dBm |
| Power Resolution | 0.1 dB |
| Power Accuracy | ±0.75 dB @ ≥-80 dBm ±1.5 dB @ -110 dBm to -80 dBm ±2.5 dB @ <-110 dBm |
| Modulation Bandwidth | 20 MHz Optional 100 MHz |
| RF Output Connector | Type N, female, 50 Ω |
| Temperature Range | Operating: 0 to 50 °C Storage: -20 to 70 °C |
| OS | Android |
| Languages | English, Chinese |
| Dimensions | 7.8 in (h) x 3.7 in (w) x 2.4 in (d) 197 mm (h) x 93 mm (w) x 61 mm (d) |
| Weight |
2 lbs. / 0.9 kg |
