The budget friendly Studer Compact Vista 1BE

The budget friendly Studer Compact Vista 1BE

Are you looking for a new budget friendly digital audio console in your newsrooms, game show, theatre or other live venue? Then you should certainly take a look at the new Vista 1 which is highly suited for this in both fixed and portable systems.

The compact solution for your newsroom, gameshow or live venue.

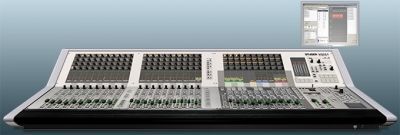

The new Studer Compact Vista 1 comes complete as a single chassis, with control surface, I/O connections and DSP all integral, considerably reducing weight and footprint. This new desk is highly suited to both fixed and portable systems, such as newsrooms, game shows, theatres or other live venues, while its compact size makes it a natural choice for OB and ENG vans, with a price that's more than competitive.

Familiar look and feel
The Vista 1 is based largely on the Vista 5, so existing Vista users will be immediately familiar with all the functionality of the Vistonics™ user interface and Studer Vista control surface, plus features such as true broadcast monitoring, talkback, red light control, GPIO, N-x (Mix Minus) busses, snapshot automation and DAW control. New on the Vista 1 is an integral jingle player, played from audio files on a USB jingle stick (such as station ID or background FX), and triggered by a series of eight dedicated keys in the master section. The Studer Vista 1 also features a redundant PSU for peace of mind, and RELINK integration with other Studer Vista and OnAir consoles means the Vista 1 can easily share signals across an entire console network.

Standard and expandable I/O
With an integral DSP engine of 96 channels, the Vista 1 can handle mono, stereo and 5.1 inputs with ease, and is provided with 32 mic/line inputs, 16 line outputs and eight stereo AES inputs and outputs on rear panel connections. Both 32-fader and 22-fader models are available. I/O can be expanded using the standard Studer D21m card slot on the rear, to allow MADI, AES, AoIP, ADAT, TDIF, CobraNet, Dolby E/Digital, SDI connections etc. A MADI link can connect to any of the Studer Stagebox range for XLR connectivity as well as other formats.
