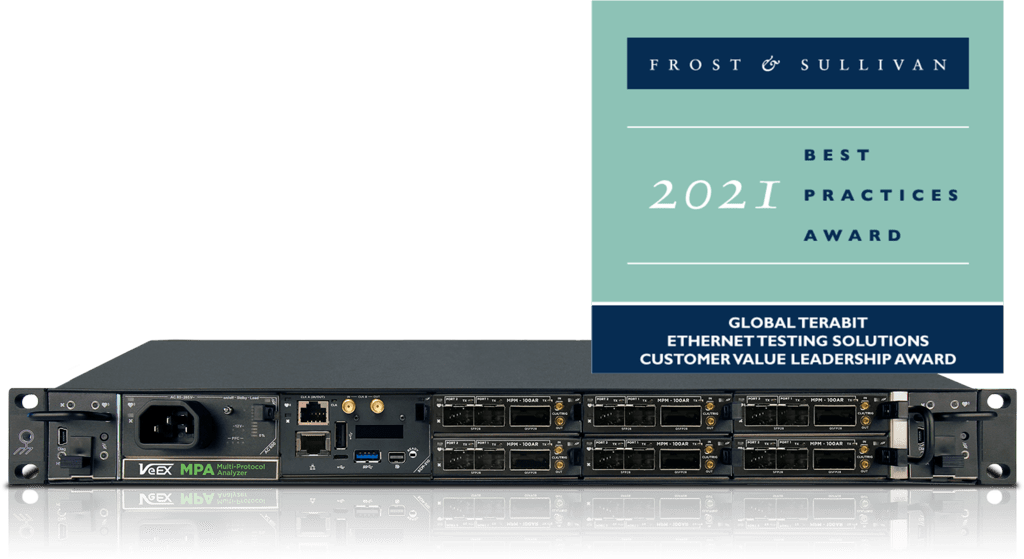

VeEX MPA Multi-Protocol Analyzer

Modular Test Platform
VeEX Inc. MultiProtocolAnalyzer
The MPA Multi-Protocol Analyzer is an advanced packet optical transport traffic generation and analysis platform specifically designed for the demands of R&D, SVT, and manufacturing testing environments. The MPA provides simultaneous independent multi-port testing from 1G to 400G for Ethernet/IP, OTN & SDH/SONET and Fibre Channel.

Advanced and flexible FPGA based test modules provide future proof hardware support for emerging standards. Supports license based test options.

The following test module options are available:

• MPM-400DCO Test Module Option (1x CFP2-DCO, 1xQSFP-DD)
• MPM-400AR Test Module Option (2x QSFP-DD, 2x QSFP56, 2x SFP56)
• MPM-400G Test Module Option (1x CFP8)
• MPM-600G Test Module Option (6x QSFP28)
• MPM-100AR Test Module Option (1x QSFP28, 2x SFP28)
• MPM-100G Test Module Option (1x QSFP28, 1x CFP4)
• MPM-10G Test Module Option (2x SFP+)

Platform Highlights

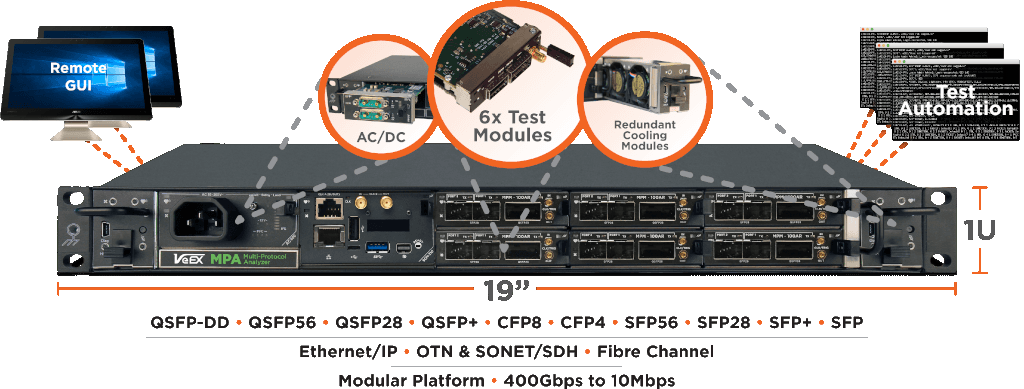

• Supports up to 6 pluggable test modules which can be configured independently and operated simultaneously
• Simultaneous and independent Multi-Port, Multi-Protocol, & Multi-User testing
• Compact 1U x 19” rack mounted chassis with low power and small size footprint for dense application environments
• Completely modular and fully customer-maintainable platform designed for 24x7 operation
• Intuitive remote GUI with simple, consistent setup and workflow across all test modules
• Comprehensive test automation and CLI scripting, supports both native Python API and SCPI CLI
• Pay-As-You-Go platform allowing test modules to be easily added on-site and new capabilities to be downloaded
• Significantly reduces the amount of testing equipment, required footprint, and test time

Key test applications

Ethernet/IP Traffic Generation & Analysis

• Full line rate layer 1-4 multi-stream, throughput, frame loss, latency, packet jitter, and BERT characterization
• PCS & RS-FEC layer testing
• RFC 2544 and Y.1564 compliance testing
• Service disruption time (SDT) measurement

OTN Traffic Generation & Analysis

• OTL and FEC layer testing
• Multi-Channel OTN testing with support for parallel testing of up to 80xODU0s
• Advanced multi-stage OTN multiplexing with Ethernet, GFP, Fibre Channel, SDH/SONET, & PRBS clients
• Complete overhead/trace generation and analysis with byte capture
• Thru mode with error & alarm stimulus testing
• Service disruption time and delay measurements

SONET/SDH Traffic Generation & Analysis

• Multi-Channel SONET/SDH testing with support for parallel testing up to 192 channels
• PRBS and GFP/Ethernet mapping clients
• Complete overhead/trace generation and analysis with byte capture
• Thru mode with error & alarm stimulus testing
• PRODUCTS.MPA.LIST2.LI15
• Service disruption time and delay measurements

Fibre Channel Traffic Generation & Analysis

• Full line rate throughput, frame loss, latency and BERT characterization
• FEC layer testing
• Fibre Channel switch login and performance verification with FLOGI/PLOGI
• Buffer-to-buffer credit and flow control analysis
• Service disruption time measurement

Transceiver & Physical Layer Testing

• QSFP-DD, QSFP56, QSFP28, QSFP+, CFP8, CFP4, SFP56, SFP28, SFP+, SFP module verification
• Unframed BERT for signal integrity testing
• Transceiver and MDIO/I2C testing
• Transceiver module health check feature
• High speed lane clock stressing/analysis and optical power level verification
