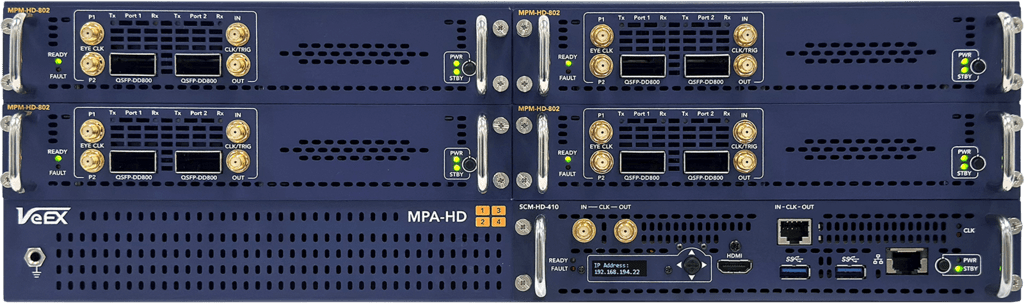

VeEX MPA-HD | High Density Test System

Simultaneous & Independent Multi-Port Testing
Advanced traffic generation and analysis platform specifically designed for the demands of R&D, SVT, and manufacturing testing environments.

Platform Highlights

• Common HTML5 Web UI, Python API and SCPI CLI as the 1U MPA platform for seamless integration into the testing environment
• Specifically designed for multi-port 800G and future high powered testing applications
• 3U x 19” benchtop or rack mounted operation with mounting ears
• Modular design, supports 4x pluggable test modules
• Modern and very efficient front-to-back cooling system with field serviceable fans
• Single or dual pluggable 90-140VAC / 180-240VAC power supply units (PSU) with load sharing and redundancy options
• Power consumption: 2x MPM-HD-802 test modules @ <1,000W typical, 4x MPM-HD-802 test modules @ <1,600W typical; The chassis itself can support >3.5k

Supported Modules

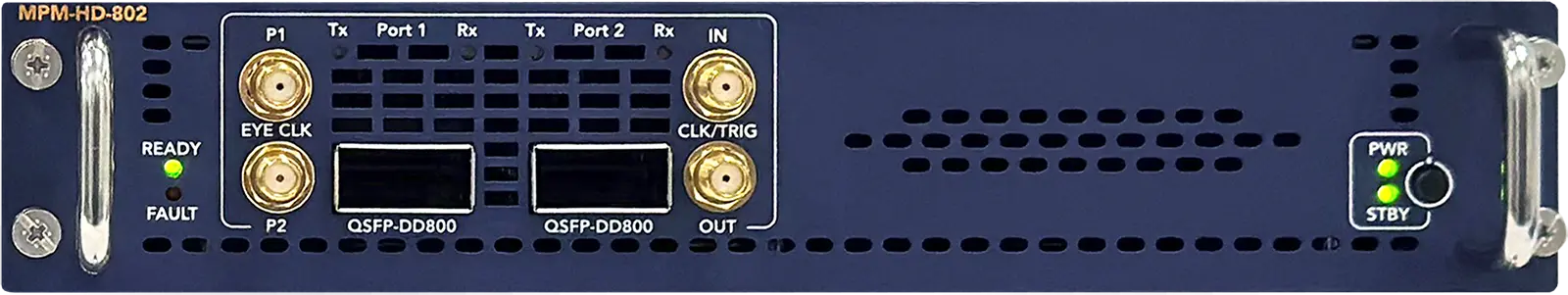

MPM-HD-802™

Dual Port 800G QSFP-DD800 Test Module

Applications

• Dual 800G QSFP-DD800 test ports
• 800G/400G/200G/100G and break out applications
• QSFP-DD800, QSFP112, QSFP-DD, QSFP56, QSFP28, AOC, DAC, AEC & LPO support
• Multi-user, each port supports an independent user and test
• 400GE 400GAUI-8
• L1, L2, L3 test applications including FEC, traffic and BERT generation and analysis
• Comprehensive support for high power coherent ZR and OpenZR+ plugs >30W each
