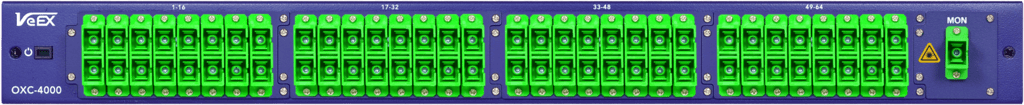

OXC-4000 Optical Test Switch Series

Optical Switches for High Capacity Applications
The OXC-4000 series switches are designed specifically for testing fiber dense networks and can be controlled directly by the RTU/RFTS test probe or remotely via VeEX's VeSion  server. It can be easily cascaded to allow a single RTU to monitor up to 4608 fiber ports. The OXC-4000 can be located with the RTU or even off-site at nodes with multiple fiber branching and controlled over ethernet.

Platform Highlights

• MPO/APC, SC/APC or LC/APC connector configurations
• Up to 288 ports in a single 1U rack (MPO-24 connectors)
• Controlled by VeSion  server or RTU/RFTS via Ethernet interface
• Support integrated FWDM for in-service monitoring
• Cascading of multiple switches to support higher fiber counts or custom configurations
• MEMS switch technology for up to 288 port counts
• Compact rack-mount design with 300 mm depth
• Flush mount or up to 4-inch recessed rack mount bracket options
• Left or right-angled facing bulkhead connectors to facilitate easy fiber patch cord management
• Dual input powering options (5VAC or -48 Volts DC)
• Compatible with an existing OXA-4000 series switches via VeSion  Ethernet/IP connection

Key Features

• Low insertion loss
• Wide and flat passband
• Fast switching time, <15 ms for adjacent channels
• Extremely low power consumption
• Protocol and bit-rate independent
• Single fiber support
• Low back reflection and PDL performance
• Compatible with external FWDM to support in- service monitoring at 1625 nm or 1650 nm wavelength
• High reliability and long lifetime > 1 billion cycles
• Wide operating temperature range
