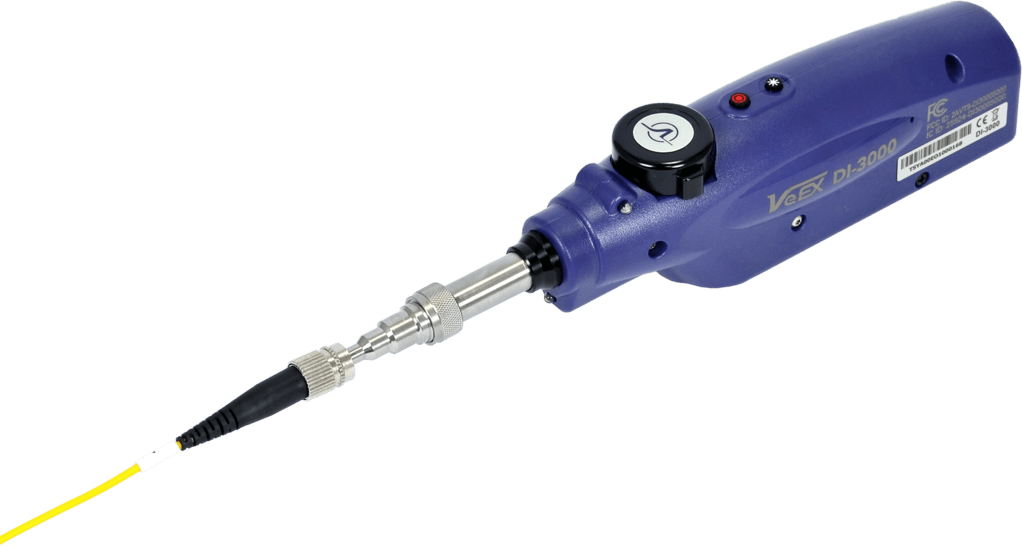

DI-3000 Auto-Focus Digital Fiber Inspection Microscope
Wi-Fi connectivity enables tether-free operation with Android™ or Apple iOS® mobile devices including select VeEX test platforms. USB operation is available for Windows PC applications or when Wi-Fi use is prohibited. One-touch auto-focus along with powerful host software ensures fast, reliable connector inspection and endface analysis according to relevant IEC standards.
Platform Highlights
- One hand (left or right side), one touch operation
- Wireless connectivity with host device via Wi-Fi
- Wired connectivity with host device via USB cable
- Auto-focus in 2-4 seconds with red/green LED indicator when focus achieved
- 1/4” CMOS camera with 640 x 480 FOV
- Compatible with a wide variety of VeEX host devices:
- Built-in flashlight to illuminate dark work environments
- Blue LED light source for optimal end-face illumination
- Built-in rechargeable Li-ion battery with ≤4 hrs recharge time
- 4 – 5 hrs. runtime with autofocus**, 7 hrs. standby time
- Micro-USB interface for power and wired operation
- ≤4 hrs. recharge time***
- Inspect (male) and bulkhead (female) connectors
- Wide range of tips for PC, UPC and APC end-face types
- Weight including battery 178g
* Limitations or connection support may apply to select models
** Depends on user's test conditions, moderate usage
*** Using USB 5V 2.1A AC charger adapter
Auto focus detection & analysis
- Probe automatically performs and detects optimal image focus
- Focused image is automatically transferred to host device for viewing and Pass/Fail analysis per IEC 61300-3-35 standards
- No human intervention necessary during image focus, transfer and analysis process
- User can decide to manually refocus and recapture images as required
- Report generation (html and PDF) directly from host device
- Image compare function enables before/after inspection for cleaning purposes
