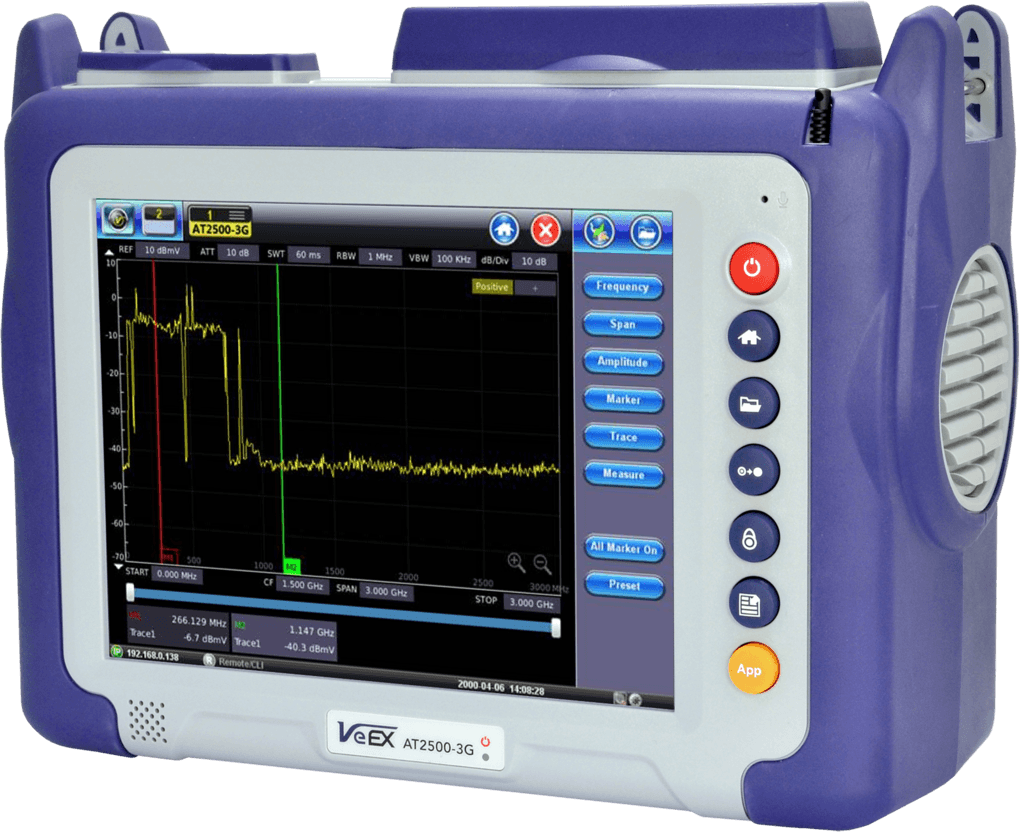

AT2500-3G 3 GHz Advanced Spectrum Analyzer

AT2500-3GDOCSIS 3.X/4.0
Next Generation Headend Maintenance Test Solution
VeEX's new AT2500-3G is the industry's most complete 3 GHz advanced spectrum analyzer and multi-standards test solution. Incorporating a high-resolution color touch-screen, the AT2500-3G features 3 GHz spectrum analysis, digital channel, VeCheck, MPEG analysis and Ethernet test capabilities. Comprehensive SLM measurements include Single Channel, Fast Full Band and real-time plant level scan, Tilt, Headend Check, and FCC Digital POP tests.

Now is the Time to Consider the AT2500-3G! Find out if you qualify for our trade-in program, contact our experst below

Platform Highlights

High resolution color 10.4” touch-screen with graphical user interface
Remote access and control via Web Browser, VNC® client and ReVeal PC software
Ethernet LAN management port for remote control, back office applications and workforce management
Fast and efficient test result transfer to USB memory stick
Maintain instrument software, manage test setups and channel tables, process measurement results and generate customer test reports using included ReVeal PC software
EZ-Remote for remote testing/monitoring, assistance and training across Internet connections
View test results and create detailed reports by region, area, system, and technician, using VeSion R-Server centralized management
Ability to lock user interface to prevent unwanted human interference during long-term testing
Supports DOCSIS 3.1 test module*

key features

3 GHz high sensitivity advanced spectrum analyzer with built in automatic filters for increased dynamic range*
Superior QAM demodulation capability and excellent BER performance, featuring MER capability up to 47 dB
Annex A, B, C, DOCSIS 3.1 OFDM Signal Analysis, ISDB-T, DVB-S, DVB-S2
Subcarrier Scan (patented)
Fast Full Band VeCheck up to 1.2 GHz
Real-time Full Band Downstream Level Check
Multiple trace display with detector selection and enhanced markers for added flexibility
Comprehensive SLM measurements (Single Channel, System Scan and Tilt)
MPEG Explorer: QAM channel MPEG-TS analysis*
QAM Analyzer measurements (MER, Pre/Post BER, Constellation diagram, QIA Anaylzer, Histogram and Equalizer on/off mode)
Advanced Digital measurements (HUM, EVM, Phase Jitter, Symbol Rate Error, Frequency Response, Group Delay)
FCC Proof of Performance Tests
Headend Check auto test for the entire selected Channel Table lineup*
Isolates difficult to locate problems using comprehensive QAM Impairment Analysis
